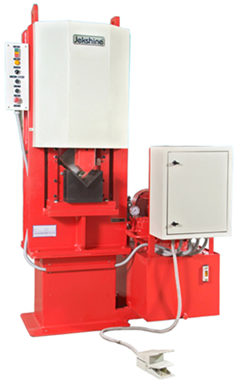

Angle Stamping Machine

Standard Supply:

• Main drive Motor

• Stamping Holder without stamp.

• Electric control panel with INCH & SINGLE CYCLE AUTO OPERATION

• Stroke adjustment rod with Limit Switch

Specifications:

Capacity 75 Ton 100 Ton

Press Type C – Type C – Type

Number Stamping : 08 Characters 12 Characters

Depth of Characters 1 MM (Adjustable) 1 MM (Adjustable)

Table Size: 500 x 300MM 500 x 300MM

Bolster Area (L.R. x F.B.) 600 x 200 MM 600 x 200 MM

Open Daylight 300MM 300MM

Throat Depth 250 MM 250 MM

Cyl Stroke: 100MM (Adjustable) 100MM (Adjustable)

Working Height: 750 MM 750 MM

Speed 25 Strokes/Min ( At 25mm Length) 25 Strokes/Min ( At 25mm Length)

Working Pressure 750 MM 750 MM

Oil Tank Capacity 160 Ltrs 200 Ltrs

Motor: 7.5 H P 10 H P
