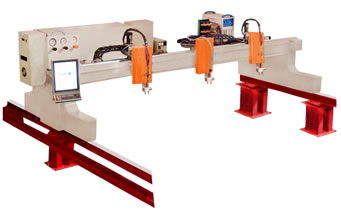

CNC Plasma Cutting

- High cutting accuracy

- High and dynamic precision

- Positioning accuracy ± 0,1mm

- Positioning speed max. 20,000 mm/min

- Cutting speed 0-10,000 mm/min

Specifications:

Rail length : 7000mm

Capacitive height sensor for Oxy fuel torch : 1 Set

Plasma Station with height sensor : 1 Set

15” CNC System Touch Screen : Technical association From Italy

Programming nesting software : In built

Cable/hose supply in transverse : Drag chain

Cable/hose supply in longitudinal : Drag Cable chain

Master, slave rails : Heavy duty

Machine color : Off white

Drive mode : Single sided drive

Effective cutting width of 1 torch : 1800 x 7000mm

Effective cutting length : 7000mm

Cutting thickness : 25mm

Plazma power source : Clean cut 25mm

Rapid speed :100-12000mm/min

Torch lifting distance :150mm : ± 0.5 mm/10M

Straight line positioning precision : ± 0.4mm/10M

Straight line repeat precision : ± 0.5mm

Plasma Arc voltage control : = ± 5%
